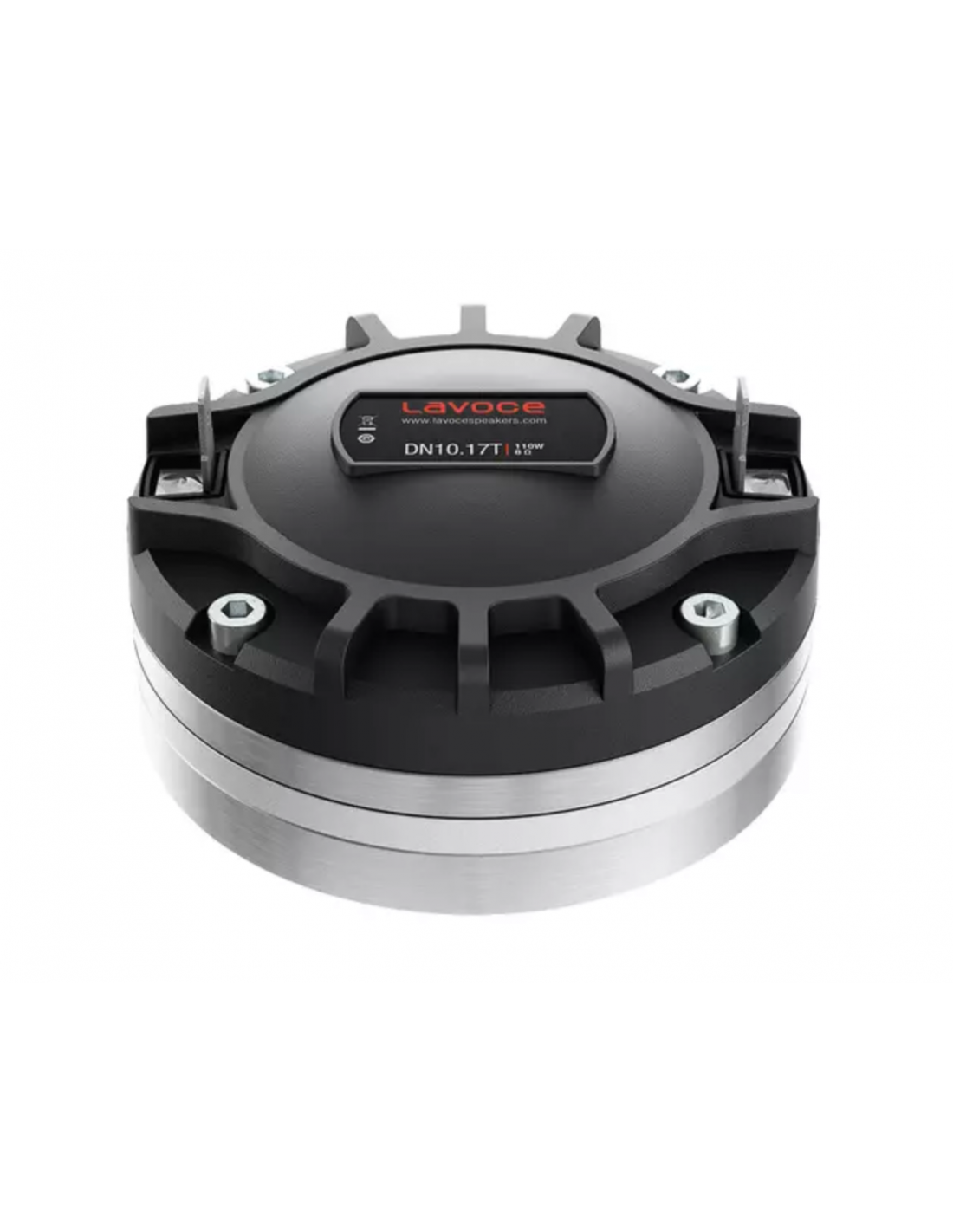

LaVoce DN10.17T Driver-Tweeter 8ohm 55 W/110 W Program, 107 dB, Frequency rang

Features

- 1.7 INCH EDGEWOUND CCA VOICE COIL

- 107 dB/SPL SENSITIVITY

- 110 W PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM

- 1200 - 18000 Hz FREQUENCY RANGE

- TITANIUM DIAPHRAGM AND SUSPENSION



General Specifications





Throat diametermm (in)25,4 (1)Nominal impedanceOhm8Minimum impedanceOhm7,3Program power (1)W110AES Power rating (2)W55Sensitivity (3)dB107Frequency rangeHz1200 ÷ 18000Voice coil diametermm (in)44,4 (1.7)Magnet material NeodymiumCoil material Edgewound CCAFormer material Fiber GlassDiaphragm material TitaniumFerrofluid NOSurround material TitaniumMagnet ODmm (in)85 (3.3)Voice coil inductancemH0,09Flux densityT1,9Recommended crossover (4)Hz1500Driver displacement volumel (ft³)0,2 (0.008)





Shipping Information





Multipack weightkg (lb)9,1 (19.9)Multipack size W x D x Hmm x mm x mm (in x in x in)412 x 376 x 94 (16.2 x 14.8 x 3.7)Net weightkg (lb)0,9 (1.9)





Notes





• 1 - Program power is defined as 3 dB greater than AES Power.
• 2 - Horn loaded test for 2h with continuous, band-limited (1500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
• 3 - Measured on axis at 2.83V, 1m, driver loaded with hd1003 horn, SPL averaged in the frequency range 1200 ÷ 18000 Hz.
• 4 - High pass filter with slope 12dB/oct. or higher.
