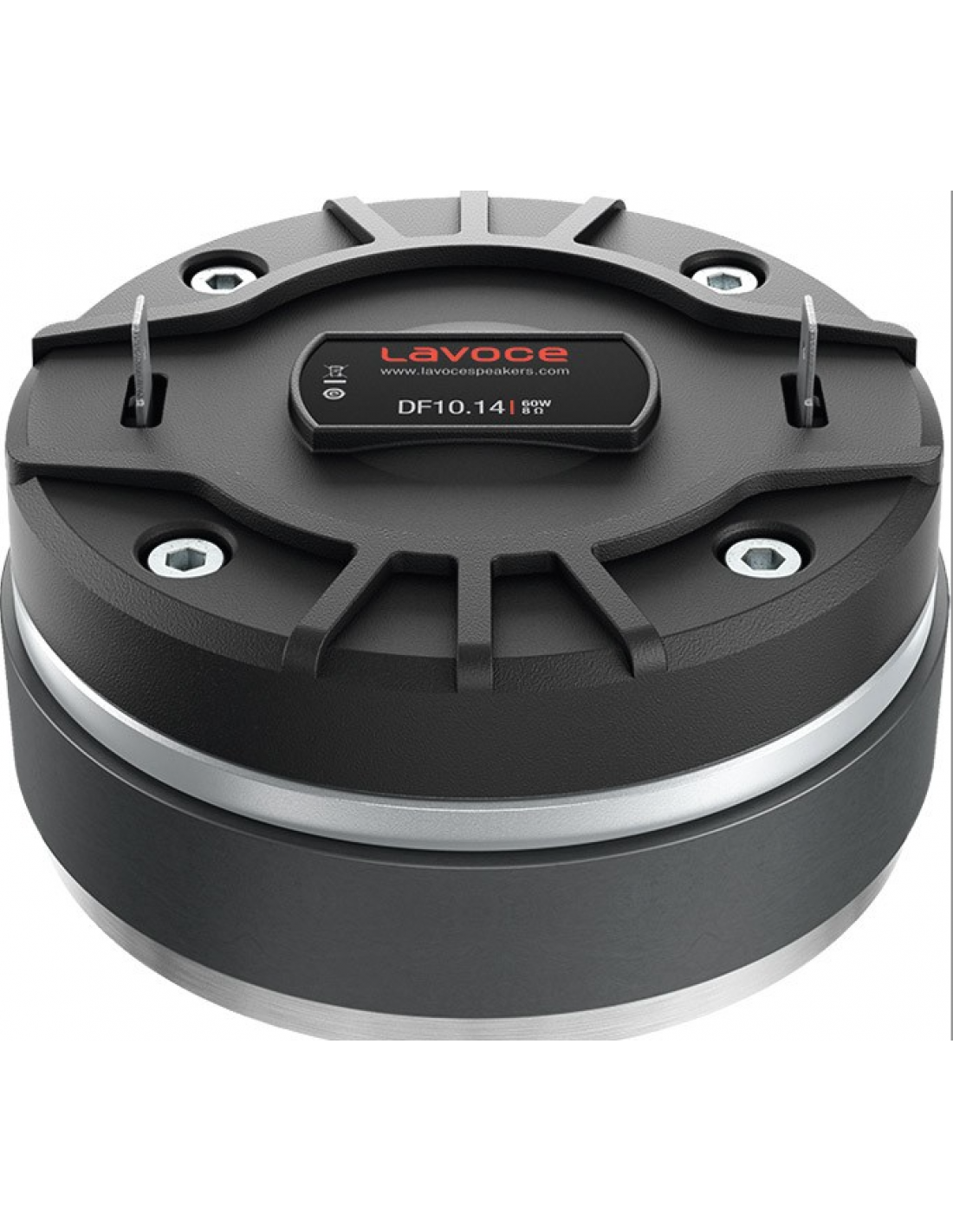

LaVoce DF10.14 Driver-Tweeter 8 ohm 30 W/60 W Program, 107 dB, Frequency rang

Features

- 1.4 INCH EDGEWOUND CCA VOICE COIL

- 106 dB/SPL SENSITIVITY

- 60 W PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM

- 1500 - 20000 Hz FREQUENCY RANGE

- HIGH TEMPERATURE POLYMERIC DIAPHRAGM



General Specifications





Throat diametermm (in)25,4 (1)Nominal impedanceOhm8Minimum impedanceOhm7,4Program power (1)W60AES Power rating (2)W30Sensitivity (3)dB106Frequency rangeHz1500 ÷ 20000Voice coil diametermm (in)36 (1.4)Magnet material FerriteCoil material Edgewound CCAFormer material KaptonDiaphragm material High temperature polymerSurround material High temperature polymer, ventedMagnet ODmm (in)90 (3.5)Voice coil inductancemH0,09Flux densityT1,5Recommended crossover (4)Hz1700Driver displacement volumel (ft³)0,3 (0.010)





Shipping Information





Multipack weightkg (lb)13,5 (29.7)Multipack size W x D x Hmm x mm x mm (in x in x in)498 x 412 x 98 (19.6 x 16.2 x 3.9)Net weightkg (lb)1 (2.2)





Notes





• 1 - Program power is defined as 3 dB greater than AES Power.
• 2 - Horn loaded test for 2h with continuous, band-limited (1700-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
• 3 - Measured on axis at 2.83V, 1m, driver loaded with HD1003 horn, SPL averaged in the frequency range 1500 ÷ 20000 Hz.
• 4 - High pass filter with slope 12dB/oct. or higher.
