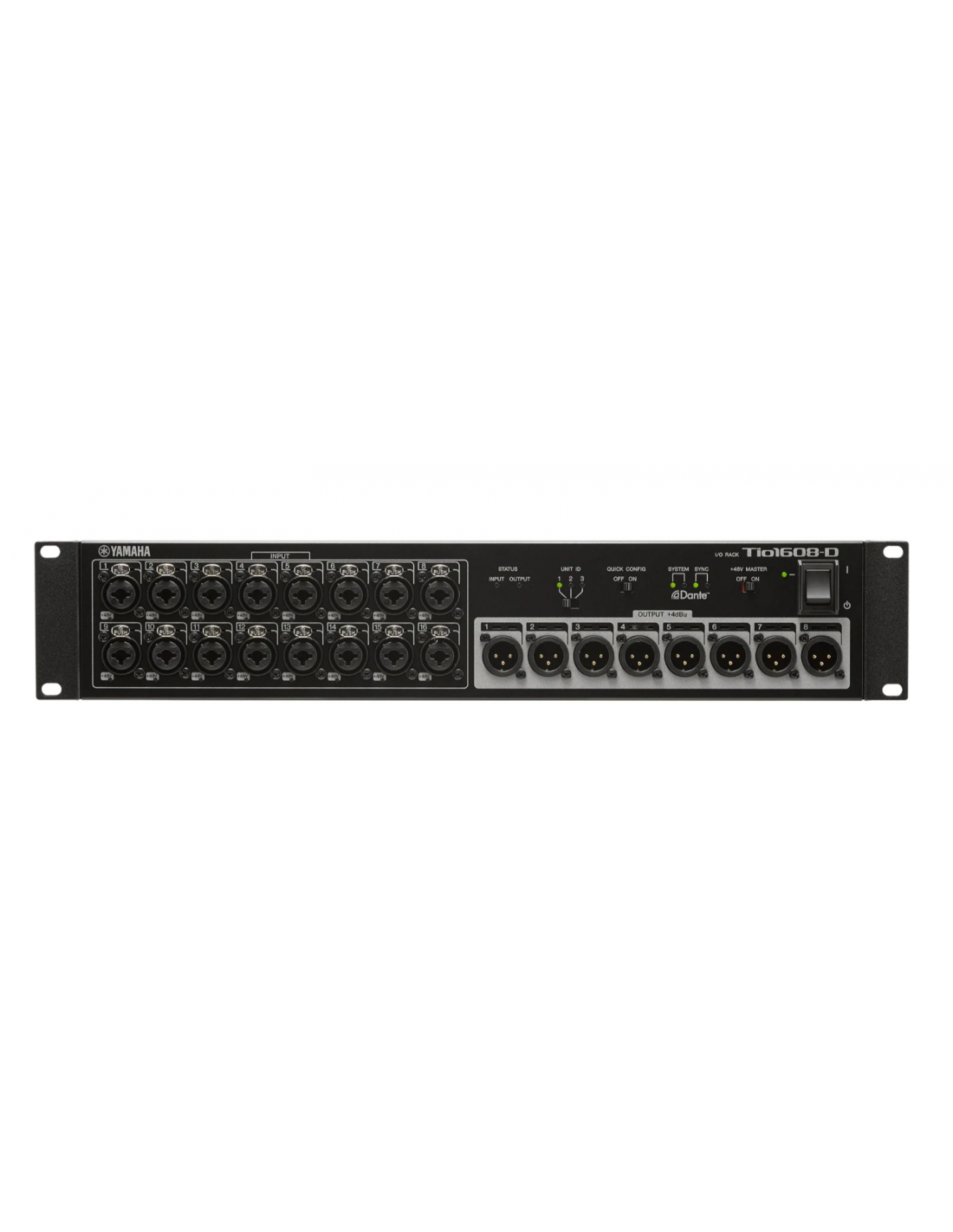

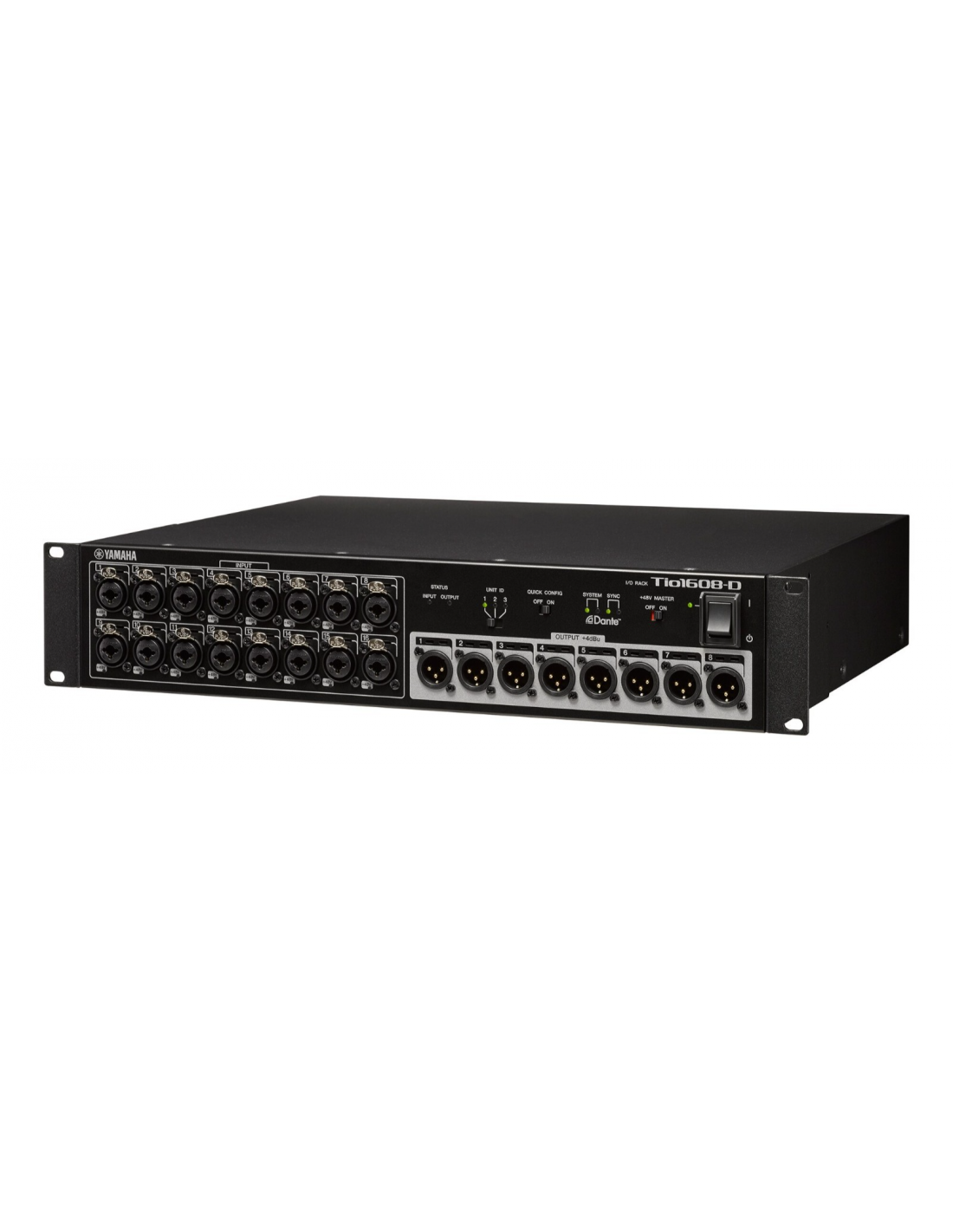

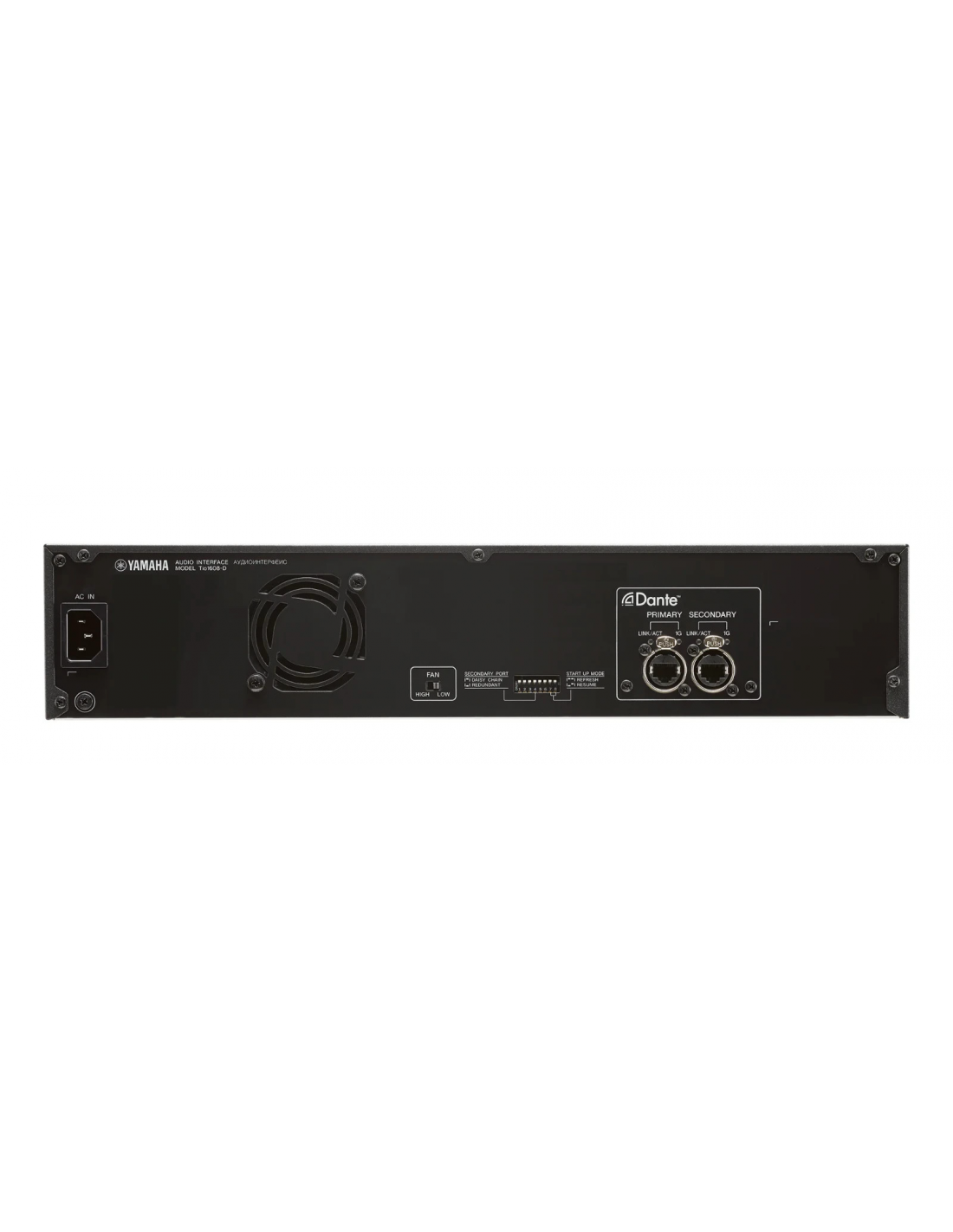

YAMAHA TIO 1608-D Audio I/O Rack STAGE BOX DIGITALE COMPATIBILE CON DANTE

Il Tio1608-D è un rack I/O equipaggiato con Dante con 16 input microfono/linea e 8 uscite linea.

General specificationsSampling frequency rateExternal44.1kHz or 48kHzSignal delayLess than 3ms INPUT to OUTPUT, connect with TF5 and NY64-D using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHzTotal harmonic distortionLess than 0.1% +4dBu@20Hz-20kHz into 600Ω, Gain=+66dB / Less than 0.05% +4dBU@20Hz-20kHz into 600Ω, Gain=-6dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18dB/octave filter @80kHzFrequency response+0.5, -1.5dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT, Fs=44.1kHz or 48kHzDynamic range108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA ConverterHum & noise levelEquivalent input noise-128dBu, Gain=+66dB *Measured with A-weighting filterResidual output noise-88dBu, ST master off *Measured with A-weighting filterCrosstalk-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB *Measured with a -30dB/octave filter @22kHzHeat dissipation100-240V, 50/60Hz, 43.5kcal/hPower requirements100-240V, 50/60HzPower consumption50WDimensionsW480mm (18-7/8")H88mm (3-4/8")D364mm (14-3/8")Net weight5.7kg (12.6lbs)AccessoriesOwner’s Manual, Power Cord(2.5m), Rubber stoppers(4)OthersTemperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
