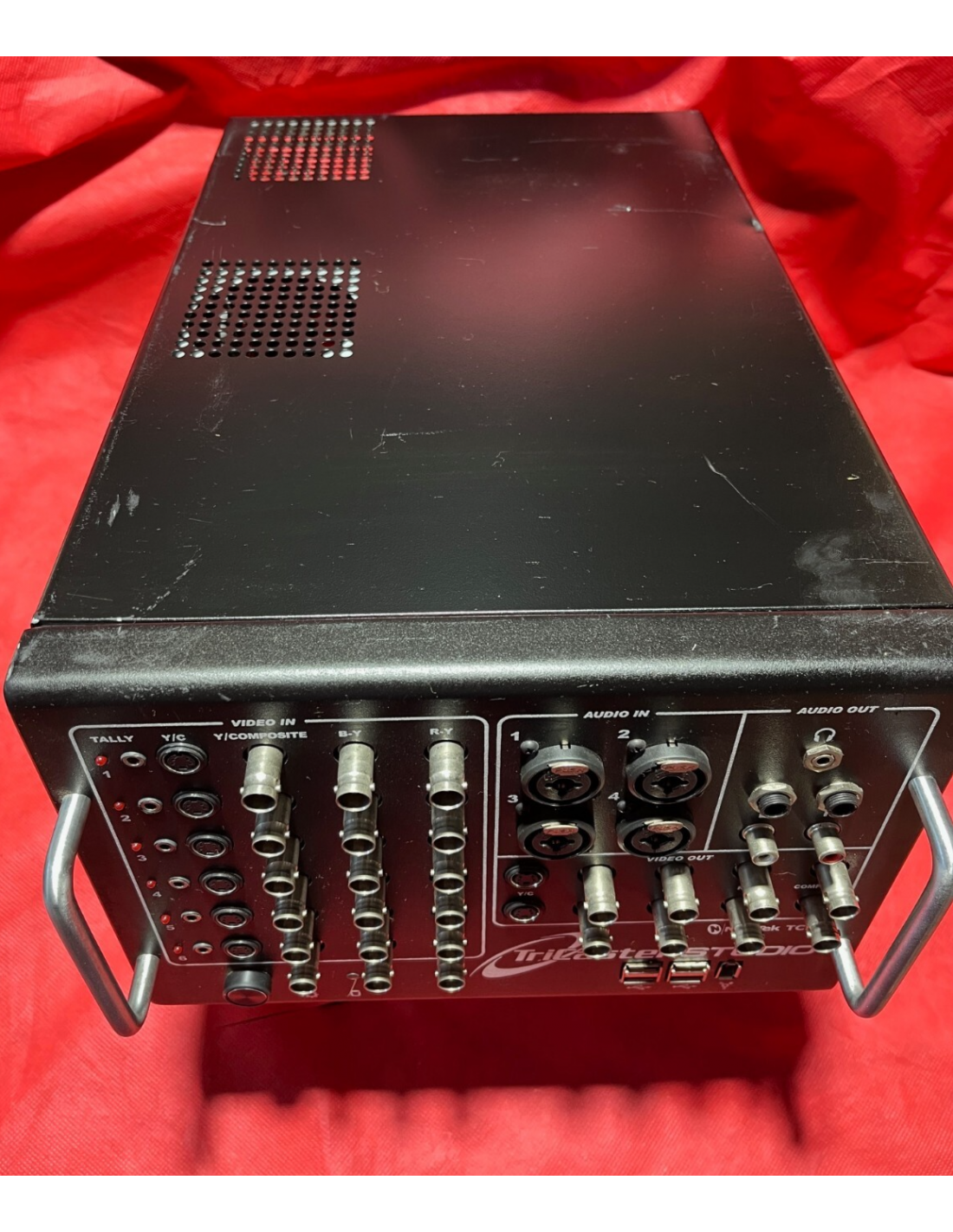

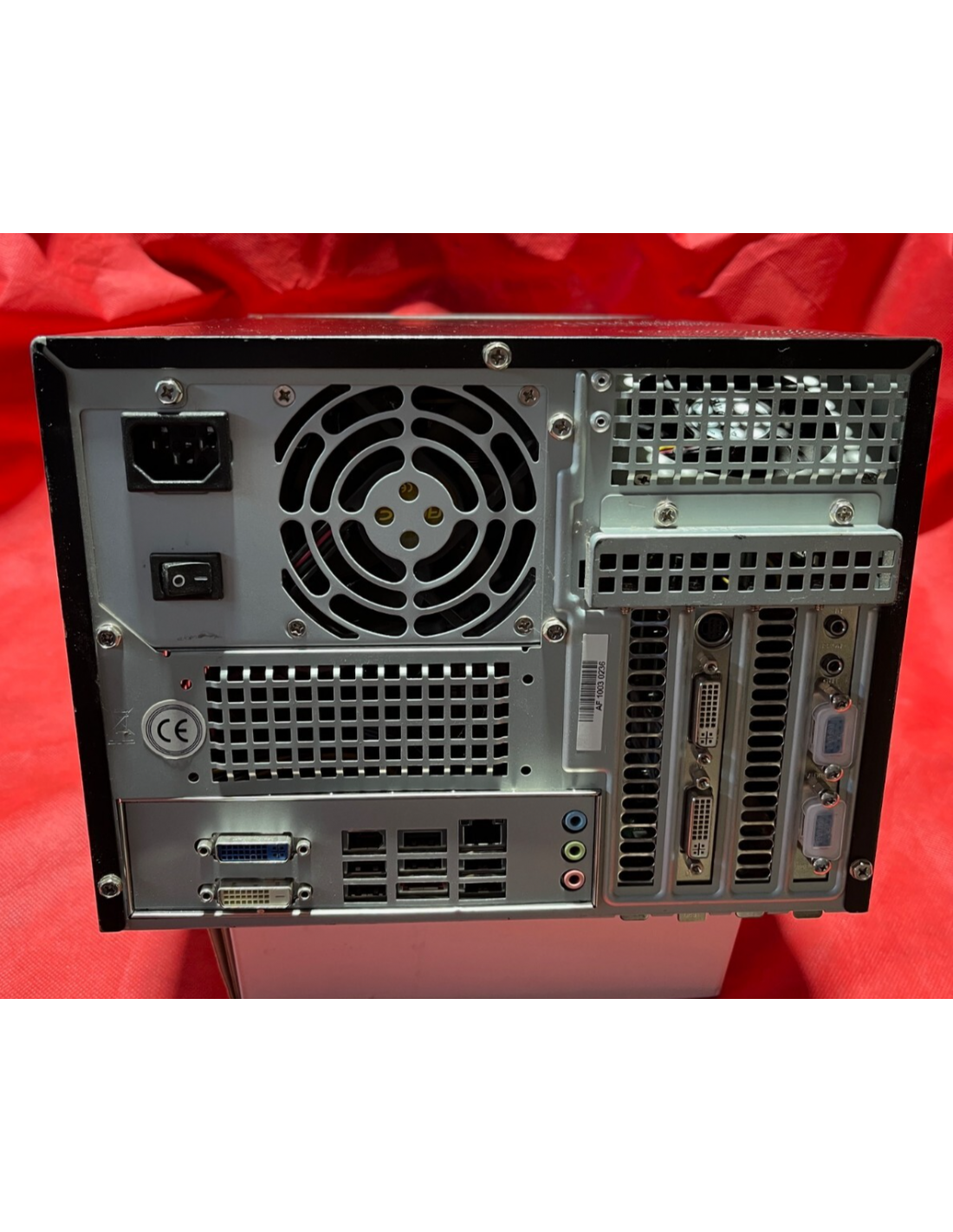

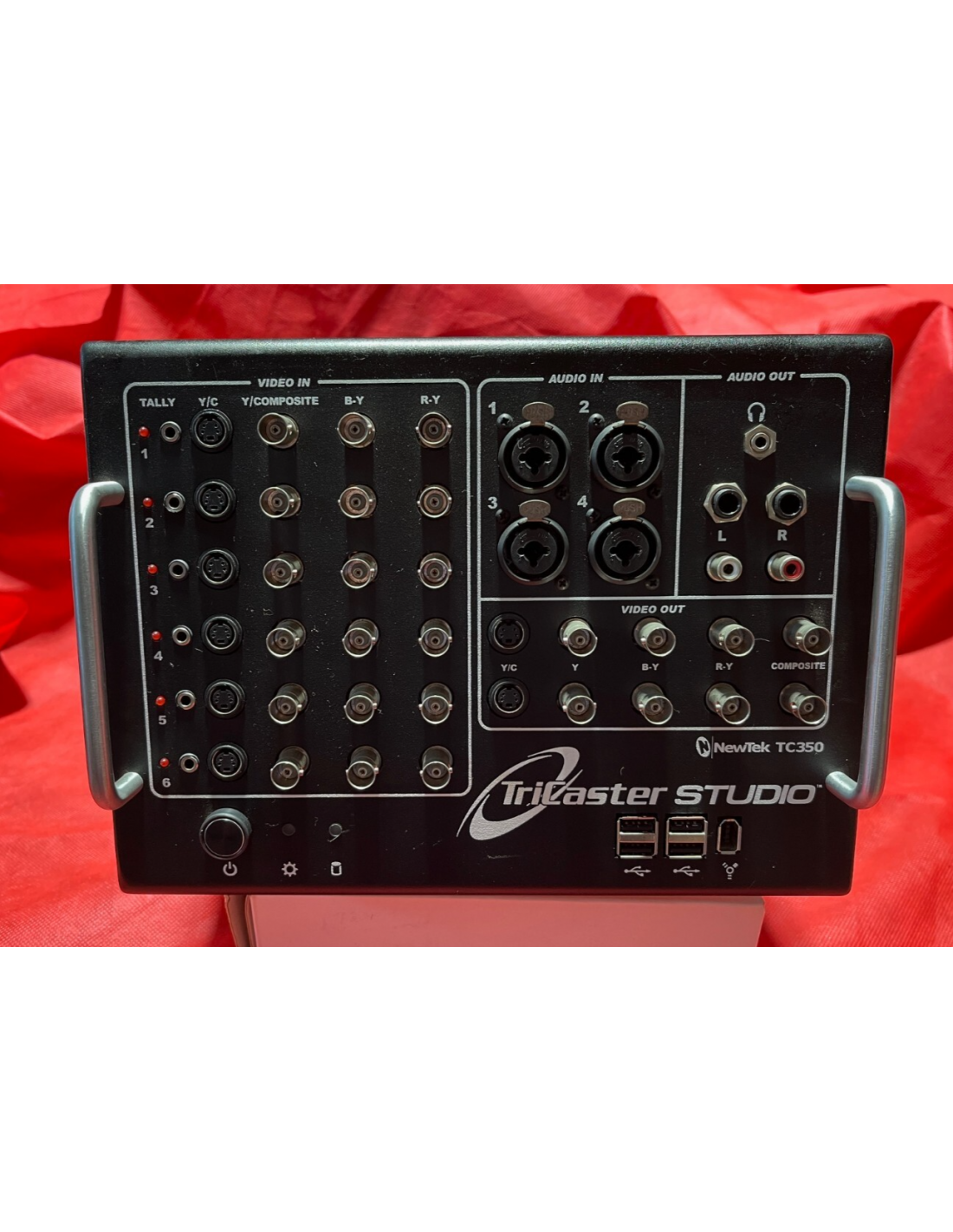

NewTek TriCaster TC350 Studio di produzione broadcast

NewTek TriCaster TC350  Studio di produzione broadcast.

The Newtek Tricaster Studio

Live Production Studio is a live switcher, titler, media streamer, media capture device and media storage device all in one. This device comes in a very manageable housing with keyboard, mouse and some cables. It can be used to create a multiple camera shoot with roll in video, titles and special effects then stream it as live media through a network connection. Standard video outputs allow a live shoot to be recorded to tape, disk or presented to a large DLP, Projector or monitor. The Tricaster Studio is a step up from the Tricaster Pro offering more input and output options and more production tools.

Live Production

The Tricaster Studio offers standard component, composite and Y/C camera input connections along with mic and standard audio inputs to actualize a multi-camera live production. The output can be recorded, presented or streamed.

Live Internet Streaming

Internet or intranet streaming is accomplished using the same input as live productions and outputting through an Internet connection. The GUI offers an easy set up with an IP address for easy user access and viewing.

Professional Titling

An internal titler allows the user to create titles of many sizes, colors and styles; the titles can roll, crawl or utilize a special effect. Titles can be stored and recalled for user convenience.

Media Editing

Media can be captured and edited into a clip for roll in capability.

File Formats

The Tricaster can store and utilize many formats including:

• Video: DV, AVI, WMV, MPEG-1
• Images: png, bmp, jpg, tga, psd
• Audio: wav, mp3

Camera Set Up

Each camera input has set up features such as Brightness, Contrast, Hue and Saturation for image enhancement and compatibility.

Audio Mixer

Each audio input has level and equalization controls.

Keying

The Tricaster has high quality keying features allowing for Chroma Keying and Luminance Keying with image adjustments.

Video Capture

Video clips can be captured and stored for recall and roll in during the live production.

VGA Projector Output

This high resolution output allows connection to a presentation projector or multisync monitor.

iVGA

One of the collaborative tools in TriCaster allows you to actually bring in desktop imagery from other computers across a local network. iVGA is a groundbreaking technology integrated for the first time into live switching.

Step Up From Tricaster Pro

• Six high resolution component video inputs, upgrade from three
• 16:9 video support
• QSXGA 16:9 projector output
• 20 hours of AVI storage
• Two more balanced audio inputs
• Two DDR with alpha channel
• Upstream effects
• More file formats supported
• VC-1 streaming support

Media Storage:20 Hour Hard drive

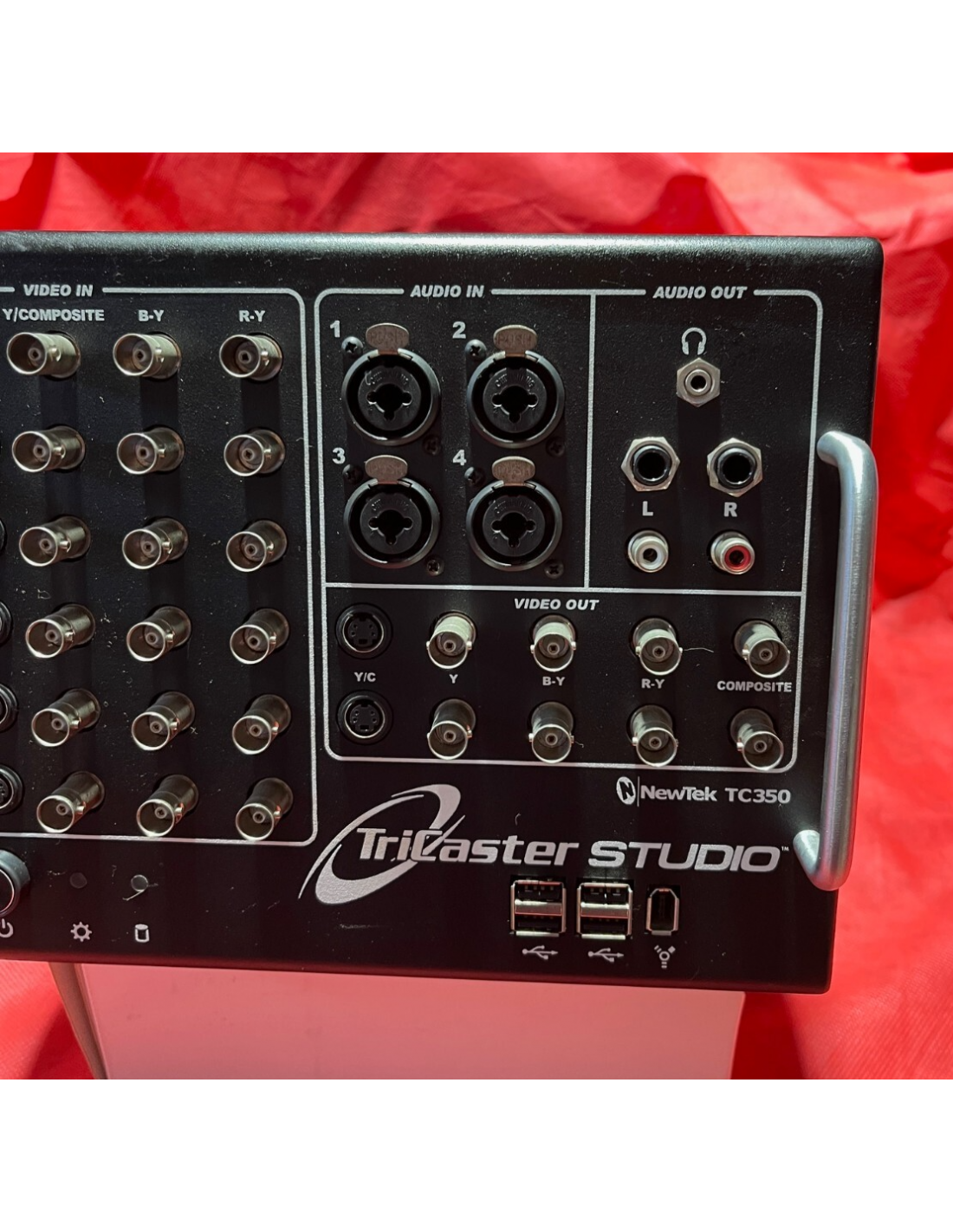

Audio In:
Mic Inputs x4, on combo 1/4" connectors and XLR connectors
Unbalanced Stereo Audio, on RCA connectors
Balanced Stereo Audio, on XLR connectors

Utility Inputs:
IEEE-1394 x2, on one 4-pin and one 6-pin connector
USB x2, on standard USB connections
Network Input, on an RJ-45 connector

Video Out:
Component, on RCA connectors
Composite, on an RCA connector
Y/C S-Video, on a 4-Pin connector
VGA Monitor, on an HD-15 connector
DVI Video, on a DVI-D connector

Audio Out:
Unbalanced Stereo Audio, on RCA connectors
Headphone Output, on a stereo mini plug

Utility Out:
Internet Streaming Output, on an RJ-45 connector
