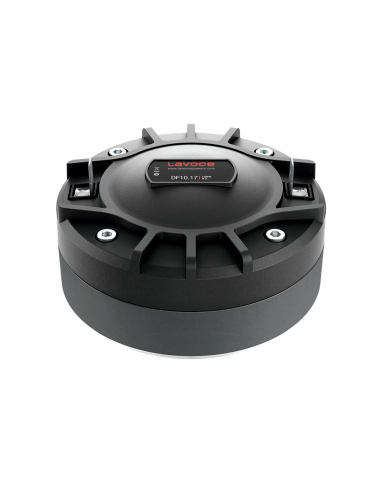

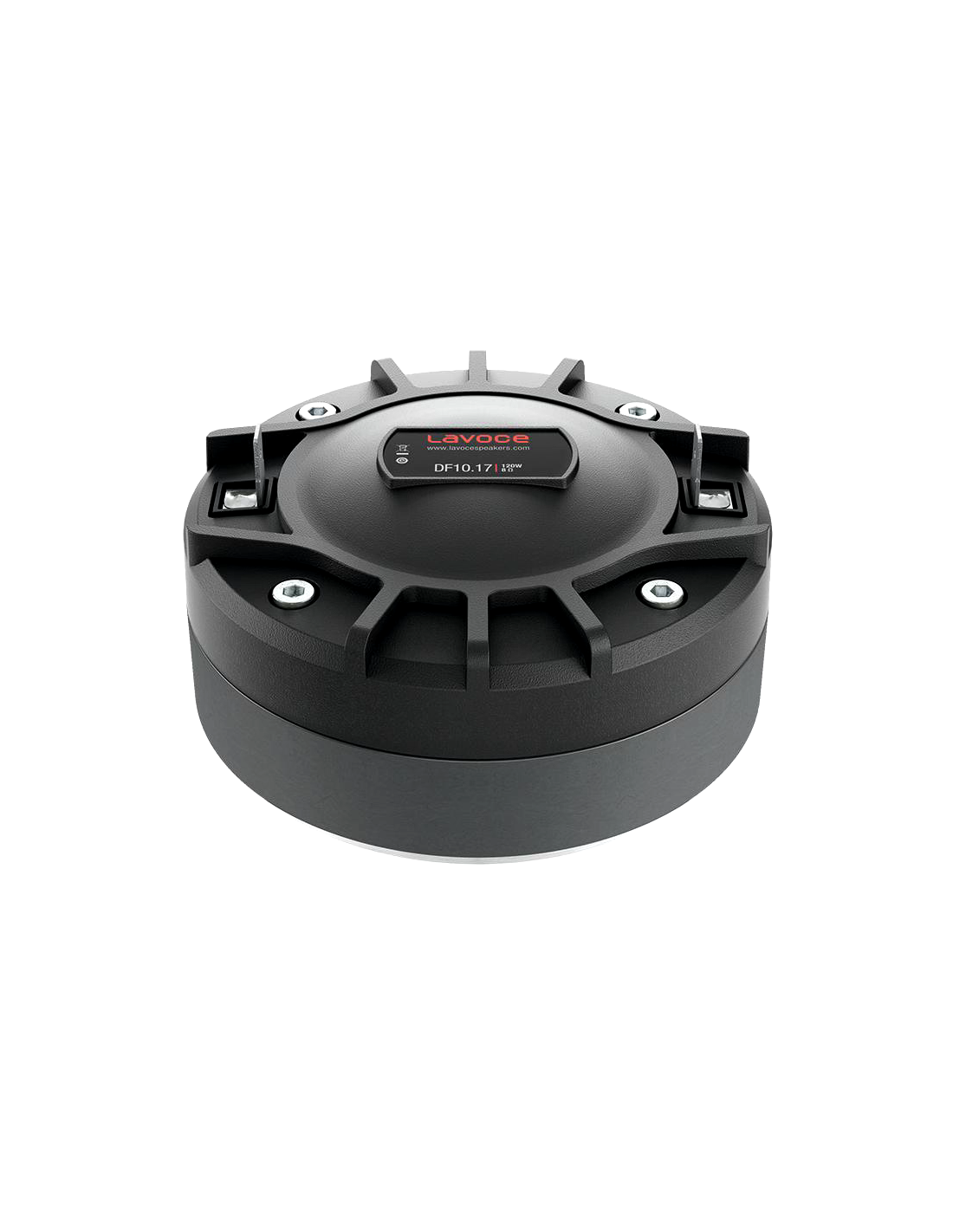

LaVoce DF10.17 Driver-Tweeter 8ohm 60 W/120 W Program, 108 dB, Frequency rang

- 1.7 INCH EDGEWOUND CCA VOICE COIL

- 108 dB/SPL SENSITIVITY

- 120 W PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM

- 1200 - 18000 Hz FREQUENCY RANGE

- HIGH TEMPERATURE POLYMERIC DIAPHRAGM

- VOICE COIL COPPER DEMODULATION RING

General Specifications

Throat diametermm (in)25,4 (1)Nominal impedanceOhm8Minimum impedanceOhm7,3Program power (1)W120AES Power rating (2)W60Sensitivity (3)dB108Frequency rangeHz1200 ÷ 18000Voice coil diametermm (in)44,4 (1.7)Magnet materialFerriteCoil materialEdgewound CCAFormer materialFiber GlassDiaphragm materialHigh temperature polymerSurround materialHigh temperature polymer, ventedMagnet ODmm (in)102 (4.0)Voice coil inductancemH0,08Flux densityT1,4Recommended crossover (4)Hz1600Driver displacement volumel (ft³)0,45 (0.016)

Shipping Information

Multipack weightkg (lb)15,9 (35)Multipack size W x D x Hmm x mm x mm (in x in x in)460 x 427 x 109 (18.1 x 16.8 x 4.3)Net weightkg (lb)1,6 (3.5)

Notes

• 1 - Program power is defined as 3 dB greater than AES Power.
• 2 - Horn loaded test for 2h with continuous, band-limited (1600-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
• 3 - Measured on axis at 2.83V, 1m, driver loaded with HD1003 horn, SPL averaged in the frequency range 1200 ÷ 18000 Hz.
• 4 - High pass filter with slope 12dB/oct. or higher.
