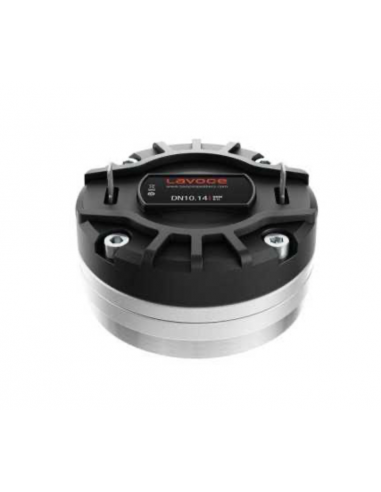

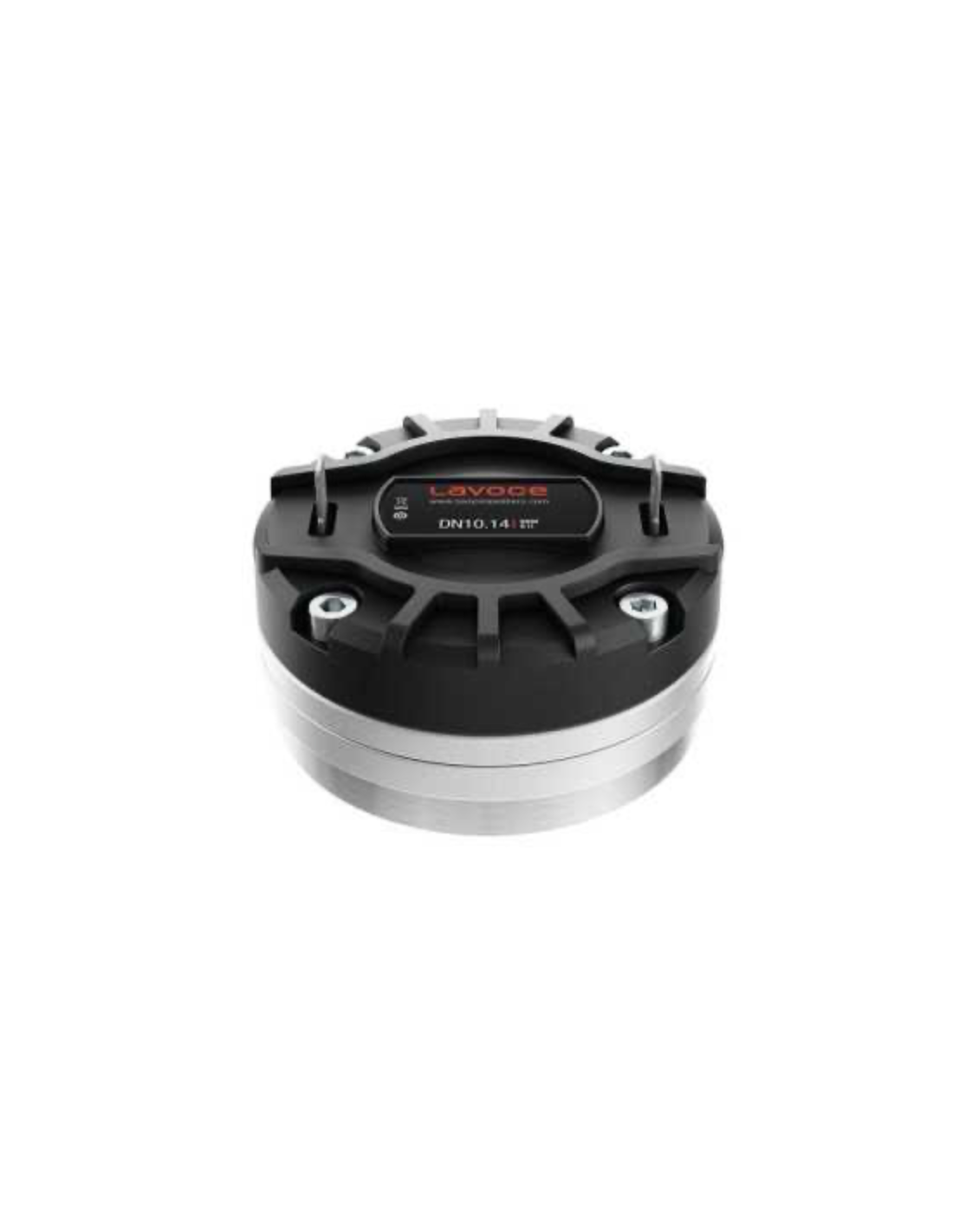

LaVoce DN10.14 Driver-Tweeter 8ohm 30 W/60 W Program, 107 dB, Frequency rang

Features

- 1.4 INCH EDGEWOUND CCA VOICE COIL

- 107 dB/SPL SENSITIVITY

- 60 W PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM

- 1500 - 20000 Hz FREQUENCY RANGE

- HIGH TEMPERATURE POLYMERIC DIAPHRAGM

General Specifications

Throat diametermm (in)25,4 (1)Nominal impedanceOhm8Minimum impedanceOhm7,4Program power (1)W60AES Power rating (2)W30Sensitivity (3)dB107Frequency rangeHz1500 ÷ 20000Voice coil diametermm (in)36 (1.4)Magnet materialNeodymiumCoil materialEdgewound CCAFormer materialKaptonDiaphragm materialHigh temperature polymerSurround materialHigh temperature polymer, ventedMagnet ODmm (in)70 (2.8)Voice coil inductancemH0,09Flux densityT1,9Recommended crossover (4)Hz1700Driver displacement volumel (ft³)0,1 (0.005)

Shipping Information

Multipack weightkg (lb)7,2 (15.8)Multipack size W x D x Hmm x mm x mm (in x in x in)412 x 348 x 89 (16.2 x 13.7 x 3.5)Net weightkg (lb)0,5 (1.1)

Notes

• 1 - Program power is defined as 3 dB greater than AES Power
• 2 - Horn loaded test for 2h with continuous, band-limited (1700-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003
• 3 - Measured on axis at 2.83V, 1m, driver loaded with HD1003 horn, SPL averaged in the frequency range 1500 - 20000 Hz.
• 4 - High pass filter with slope 12dB/oct. or higher.
